Mickie Service
Mechanical Water Line Services
In 2013, Mickie Service added team members with extensive expertise in the mechanical/industrial/process market segment - complementing our historical water service capabilities. While the fundamental principles of the services are the same - there is a substantial difference in the set-up and execution of a mechanical job. Our team is highly experienced in the requirements to make these jobs successful. Some of the factors that make mechanical implementations more complex are:
- Wide Temperature Range
- Higher Pressures
- "No Leak" requirements
- Installing on scaffolding or cranes
- Very limited room for equipment
- Off-Peak work hours
With these complicating factors accounted for - we offer our core water main services:
Our commitment to safety, innovation and efficiency has given Mickie Service a strong reputation as a leader in the local civil construction industry, able to tackle a wide range of projects. Contact our responsive, highly experienced and bilingual team of experts to manage your next project.
Mickie Service Advantage
- Highly experienced team with mechanical water line services
- Broad array of basic service offerings which can be assembled to provide the most efficient and effective repair solution
- Strong partnership relationships with contractors that can provide additional specialized skills and a fast response on needed materials and equipment
- Excellent safety procedures and capabilities, resulting in an outstanding safety record
- Dedicated project management and field staff
- Strong collaborative approach on design/installation alternatives
See how we applied these capabilities on a live chiller isolation job at a major Houston hospital. Read the Case Study
Mechanical Service Areas
As an industrial water main service provider, Mickie Service Company has been providing water line services in Houston and the Gulf Coast region for more than 40 years. Our service area for Mechanical Services is Texas/Louisiana.
What is Mechanical Line Stopping?
Ideal for temporary or permanent work to be completed on pressurized piping systems, Mickie Service Company’s mechanical pipe plugs allow for isolated repairs or regular maintenance and modifications to be completed without any interruption to process flow or production or a shutdown.
Our well-maintained equipment and experienced technicians make it possible to safely and efficiently place mechanical pipe plugs or create a bypass for emergency situations and scheduled stopping of a liquid or gas flow in a pipeline at full operating pressure.
More about Mechanical Services
Common Uses for Mechanical Line Stop Services
Mechanical pipeline plugs can be performed on the following material types:
- Cast Iron
- Ductile Iron
- P.V.C. and H.D.P.E.
- Asbestos Cement / Transite
- Pre-Stressed Concrete Cylinder
- Non-Cylinder Concrete
- Stainless Steel
- Copper
- Steel
By using our pipe plugging equipment, isolation plugs can be installed to expedite numerous functions, including:
- Pipe repairs
- Blocked valve additions
- Piping demolition
- System alterations
- Piping relocations
Recent Project

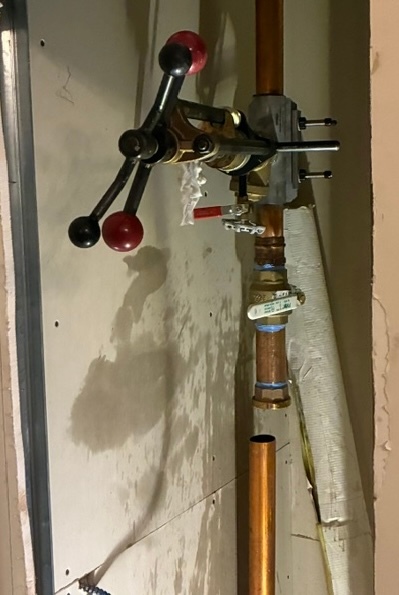

2" Line Stop — Copper Water Line
What We Did
We installed a 2" line stop on an existing copper water line to isolate the section so the contractor could cut in a new 2" isolation valve. The line remained pressurized and no service interruption was required during the work.
Why It Mattered
The building now has a permanent shutoff point that did not exist before, giving the owner full control over that section of the line going forward.
Project Details
- Pipe Size: 2"
- Pipe Material: Copper
- Location Type: Commercial Building
- Scope: Line stop, contractor coordination, valve installation support
Add-A-Valve for Copper Pipe Systems
For smaller copper pipe applications, Mickie Service uses the Add-A-Valve — a self-contained valve installation tool that lets us add a shutoff point to a live copper line without freezing the pipe, shutting down the facility, or bringing in nitrogen equipment.
Works On: Hard copper pipe — Type K, M, and L | Sizes: 1/2" – 2" | Rated: 250 PSI / 220°F
Key Features:
- Eliminates facility shutdowns during valve installation
- Cuts through copper tubing with a hardened steel stem cutter
- Expands a Viton seal across the cut to stop flow — no pipe freezing required
- No bulky nitrogen tanks or complete system shutdown needed
- Bottom cleanout cap doubles as a line tap
- Lead-free sweat ball valve included
- Loc-Tite® gasket sealant included
- Compatible with hot/cold water and water/glycol systems

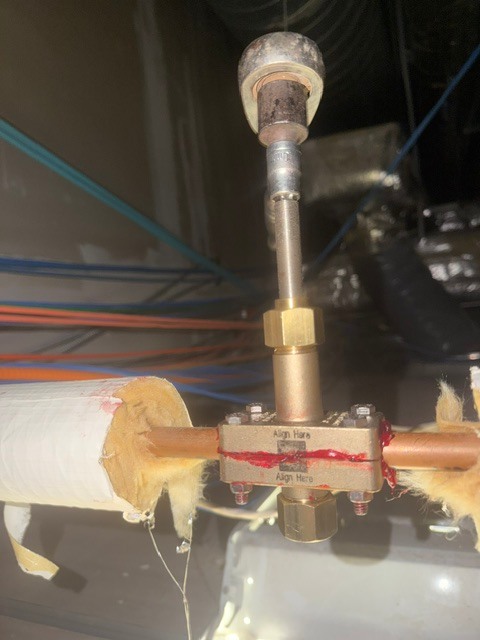

Add-A-Valve installed on copper pipe during live valve insertion
Ready To Start Your Project?
Leveraging our core capabilities in water main tapping – we now provide line stops, insertion valves, and private fire line installation.
